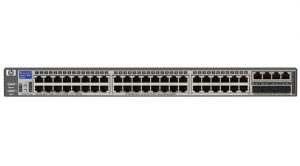

HPE® ProCurve J9022A EOL Maintenance and Support

HPE® ProCurve J9022A EOL Maintenance and Support




HPE® End of Support date: December 30, 2014
Status: Supported by TeamKCI

The HPE® ProCurve J9022A SAN Appliance Has Reached EOSL on December 30, 2014 – Don’t Let Your HPE® ProCurve J9022A SAN Equipment Go Unsupported!

Get HPE® ProCurve J9022A SAN Support Now!

TeamKCI has extensive hands on experience with the HPE® ProCurve J9022A switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

TeamKCI will continue to support these units for as long as you use them.

TeamKCI Benefits

    Request A Quick Quote For HPE®!

    Email Address (required)
    This is a request for:



    Overview

    Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

    Used & Refurbished HPE® Options TeamKCI sells both new and refurbished equipment.  Used HPE® systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

    Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HPE® ProCurve J9022A switches and all other pre-owned refurbished HPE® SAN equipment we sell.  Extended warranties and 24x7x4 onsite support are also available for an additional charge.  Learn more.

    How to Get Started? For more information on a HPE® ProCurve J9022A switch or any other HPE® product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

    TechSpecs

    Technical Specifications

    Networking
    Address table size
    8000 entries
    Management features
    HPE® PCM+; HPE® PCM; command-line interface; Web browser; configuration menu; out-of-band management
    Device management
    HTML and telnet management
    General protocols
    IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 951 BOOTP; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4
    IP Multicast
    RFC 3376 IGMPv3
    MIBs
    RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1573 SNMP MIB II; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2863 The Interfaces Group MIB; RFC 3418 MIB for SNMPv3
    Network management
    IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; SNMPv1/v2c/v3
    Security
    IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL); SSHv2 Secure Shell
    Latency
    Latency: < 5.4 µs (FIFO 64-byte packets)
    Memory and processor
    Processor : MIPS @ 264 MHz, 16 MB flash, packet buffer size: 1.5 MB, 64 MB SDRAM
    Performance
    Throughput
    up to 71.4 million pps
    Switching capacity
    96 Gbps
    Ports
    Ports
    44 auto-sensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)
    Power
    Power consumption
    92 W
    Input frequency
    50 / 60 Hz
    Input operating current
    1.5 A
    Input voltage
    100-127 / 200-240 VAC
    System
    Form factor
    1U height
    Operating temperature range 32 to 113°F
    Heat dissipation 341 BTU/hr (360 kJ/hr)
    Acoustic pressure emissions Power: 40.5 dB
    Operating altitude (imperial) up to 10000 ft.
    Storage humidity 15 to 95% @ 149°F (65°C) (non-condensing)
    Electromagnetic compatibility FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3
    Immunity standard EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
    Safety cUL (CSA 22.2 No. 60950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 60950
    Weight 8.6 lb.
    Dimensions (W x D x H) 12.7 x 17.4 x 1.7 in.
    When choosing a third-party support provider for HPE, you can consider things like:

    • Expertise: Whether the provider has the right expertise to support the HPE software
    • Cost: Whether the cost is reasonable compared to the benefits
    • Support terms: What the terms of support are, including response and resolution times
    • Version compatibility: Whether the provider can support the specific versions of HPE software


    TeamKCI - Worldwide Leader in SAN and Network Support.
