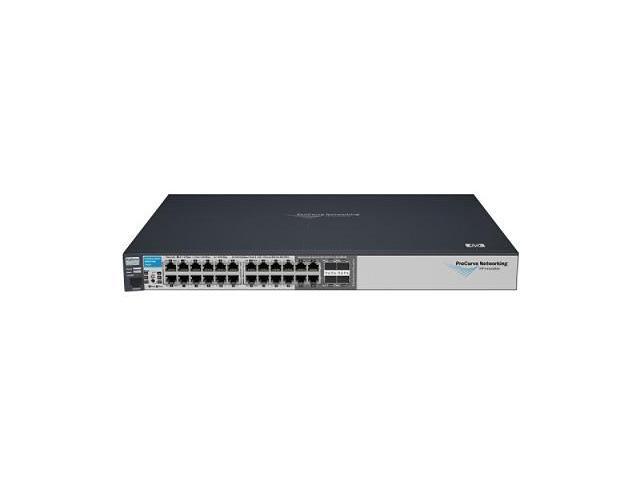

HP ProCurve J9021A

HP ProCurve J9021A

TeamKCI has extensive hands on experience with the HP ProCurve J9021A switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

The HP ProCurve J9021A reached it’s end of support
on December 30, 2014

[circular_countdown settings_id=’4′]

TeamKCI will continue to support these units for as long as you use them.

Request A Quote

Overview

Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

Used & Refurbished HP Options TeamKCI sells both new and refurbished equipment.  Used HP systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HP ProCurve J9021A switches and all other pre-owned refurbished HP SAN equipment we sell.  Extended warranties and 24x7x4 onsite support are also available for an additional charge.  Learn more.

How to Get Started? For more information on a HP ProCurve J9021A switch or any other HP product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

TechSpecs

Technical Specifications

Networking
Address table size
8000 entries
Management features
HP PCM+; HP PCM; command-line interface; Web browser; configuration menu; out-of-band management
Device management
HTML and telnet management
General protocols
IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 951 BOOTP; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4
IP Multicast
RFC 3376 IGMPv3
MIBs
RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1573 SNMP MIB II; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2863 The Interfaces Group MIB; RFC 3418 MIB for SNMPv3
Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; SNMPv1/v2c/v3
Security
IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL); SSHv2 Secure Shell
Latency
Latency: < 5.6 µs (FIFO 64-byte packets)
Memory and processor
Processor : MIPS @ 264 MHz, 16 MB flash, packet buffer size: 0.75 MB, 64 MB SDRAM
Performance
Throughput
up to 35.7 million pps
Switching capacity
48 Gbps
Ports
Ports
20 auto-sensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Power
Power consumption
48 W
Input frequency
50 / 60 Hz
Input operating current
1.0 A
Input voltage
100-127 / 200-240 VAC
System
Form factor
1U height
Operating temperature range 32 to 113°F
Heat dissipation 164 BTU/hr (173 kJ/hr)
Acoustic pressure emissions Power: 40.3 dB
Operating altitude (imperial) up to 10000 ft.
Storage humidity 15 to 95% @ 149°F (65°C) (non-condensing)
Electromagnetic compatibility FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3
Immunity standard EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Safety cUL (CSA 22.2 No. 60950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 60950
Weight 7.21 lb.
Dimensions (W x D x H) 12.7 x 17.4 x 1.7 in.
