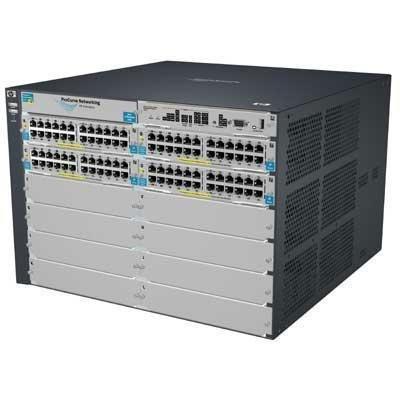

HPE® ProCurve J8775B EOL Maintenance and Support

HPE® ProCurve J8775B EOL Maintenance and Support

HPE® End of Support date: July 1, 2019
Status: Supported by TeamKCI

Request A Quote

TeamKCI has extensive hands on experience with the HPE® ProCurve J8775B switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

TeamKCI will continue to support these units for as long as you use them.


    Request A Quick Quote For HPE®!

    Email Address (required)
    This is a request for:



    Overview

    Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

    Used & Refurbished HPE® Options TeamKCI sells both new and refurbished equipment.  Used HPE® systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

    Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HPE® ProCurve J8775B switches and all other pre-owned refurbished HPE® SAN equipment we sell.  Extended warranties and 24x7x4 onsite support are also available for an additional charge.  Learn more.

    How to Get Started? For more information on a HPE® ProCurve J8775B switch or any other HPE® product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

    TechSpecs

    Technical Specifications

    Configuration
    Switch fabric speed
    76.8 Gbps
    Networking
    Management features
    HPE® PCM+; HPE® PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
    Device management
    HTML and telnet management
    General protocols
    IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 3046 DHCP Relay Agent Information Option
    IP Multicast
    RFC 3376 IGMPv3
    MIBs
    RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2737 Entity MIB (Version 2)
    Network management
    IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON
    QoS/Cos
    RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF)
    Security
    IEEE 802.1X Port Based Network Access Control; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv2 Secure Shell
    Latency
    Latency: < 6 µs (FIFO)
    Memory and processor
    Fabric : Motorola PowerPC MPC8245 @ 330 MHz, 24 MB flash, packet buffer size: 36 MB, 64 MB SDRAM
    Performance
    Throughput
    up to 48 million pps
    Ports
    Ports
    4 open module slots; 96 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 192 auto-sensing 10/100 ports or 96 auto-sensing 10/100/1000 ports or 16 mini-GBICs or 4 10-GbE ports, or a combination
    Power
    Power supply slots open
    1
    Power consumption
    630 W
    Input frequency
    50 / 60 Hz
    Input operating current
    8.2 / 3.8 A
    Power supply name
    1 x J4839A
    Input voltage
    100-127 / 200-240 VAC
    System
    Form factor
    5U height
    Operating temperature range32 to 104°F
    Heat dissipation2152 BTU/hr (2270 kJ/hr)
    Acoustic pressure emissionsPower: 64.2 dB, DIN 45635T.19 per ISO 7779
    Operating altitude (imperial)up to 15000 ft.
    Storage humidity15 to 95% @ 149°F (65°C) (non-condensing)
    Electromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; CISPR 22 Class A; EN 55024; IEC/EN 61000-3-2; IEC/EN 61000-3-3
    Immunity standardEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
    SafetyCSA 22.2 No. 950; UL 60950; EN 60950
    Weight32.3 lb.
    Weight note (metric)Fully loaded
    Weight note (imperial)Fully loaded
    Dimensions (W x D x H)15.3 x 17.4 x 8.75 in.
