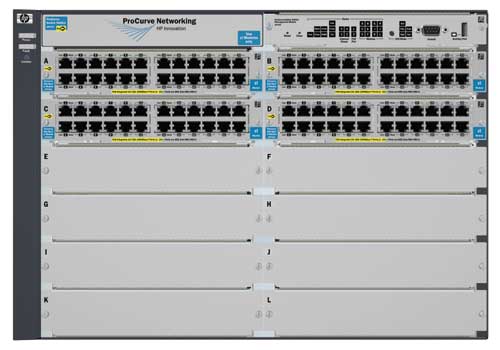

HPE® ProCurve J8700A EOL Maintenance and Support

HPE® ProCurve J8700A EOL Maintenance and Support

HPE® End of Support date: December 1, 2019
Status: Supported by TeamKCI

Request A Quote

TeamKCI has extensive hands on experience with the HPE® ProCurve J8700A switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

TeamKCI will continue to support these units for as long as you use them.


    Request A Quick Quote For HPE®!

    Email Address (required)
    This is a request for:



    Overview

    Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

    Used & Refurbished HPE® Options TeamKCI sells both new and refurbished equipment.  Used HPE® systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

    Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HPE® ProCurve J8700A switches and all other pre-owned refurbished HPE® SAN equipment we sell.  Extended warranties and 24x7x4 onsite support are also available for an additional charge.  Learn more.

    How to Get Started? For more information on a HPE® ProCurve J8700A switch or any other HPE® product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

    TechSpecs

    Technical Specifications

    Configuration
    Routing table size
    10000 entries
    Switch fabric speed
    758.4 Gbps
    Connectivity
    Routing/switching capacity
    758.4 Gbps
    Networking
    Address table size
    64000 entries
    Management features
    HPE® PCM+; HPE® PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
    Device management
    RFC 1591 DNS (client); HTML and telnet management
    General protocols
    IEEE 802.1ad Q-in-Q; IEEE 802.1AX-2008 Link Aggregation; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3af Power over Ethernet; IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1350 TFTP Protocol (revision 2); RFC 1519 CIDR; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2453 RIPv2; RFC 2548 (MS-RAS-Vendor only); RFC 3046 DHCP Relay Agent Information Option; RFC 3576 Ext to RADIUS (CoA only); RFC 3768 VRRP; RFC 4675 RADIUS VLAN & Priority; UDLD (Uni-directional Link Detection)
    IP Multicast
    RFC 3376 IGMPv3 (host joins only); RFC 3973 Draft 2 PIM Dense Mode; RFC 4601 Draft 10 PIM Sparse Mode
    IPv6
    RFC 1981 IPv6 Path MTU Discovery; RFC 2375 IPv6 Multicast Address Assignments; RFC 2460 IPv6 Specification; RFC 2464 Transmission of IPv6 over Ethernet Networks; RFC 2710 Multicast Listener Discovery (MLD) for IPv6; RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only); RFC 3019 MLDv1 MIB; RFC 3315 DHCPv6 (client and relay); RFC 3484 Default Address Selection for IPv6 ; RFC 3587 IPv6 Global Unicast Address Format; RFC 3596 DNS Extension for IPv6; RFC 3810 MLDv2 (host joins only); RFC 4022 MIB for TCP; RFC 4113 MIB for UDP; RFC 4251 SSHv6 Architecture; RFC 4252 SSHv6 Authentication; RFC 4253 SSHv6 Transport Layer; RFC 4254 SSHv6 Connection; RFC 4291 IP Version 6 Addressing Architecture ; RFC 4293 MIB for IP; RFC 4294 IPv6 Node Requirements; RFC 4419 Key Exchange for SSH; RFC 4443 ICMPv6; RFC 4541 IGMP & MLD Snooping Switch; RFC 4861 IPv6 Neighbor Discovery; RFC 4862 IPv6 Stateless Address Auto-configuration; RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 ; RFC 5340 OSPFv3 for IPv6; RFC 5453 Reserved IPv6 Interface Identifiers; RFC 5722 Handling of Overlapping IPv6 Fragments
    MIBs
    RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 1850 OSPFv2 MIB; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2787 VRRP MIB; RFC 2863 The Interfaces Group MIB; RFC 2925 Ping MIB
    Network management
    IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON
    OSPF
    RFC 2328 OSPFv2; RFC 3101 OSPF NSSA; RFC 5340 OSPFv3 for IPv6
    QoS/Cos
    RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF)
    Security
    IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2865 RADIUS (client only); RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL); SSHv1/SSHv2 Secure Shell
    Latency
    1000 Mb Latency: < 3.7 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.1 µs (FIFO 64-byte packets)
    Memory and processor
    Gigabit Module : ARM9 @ 200 MHz, packet buffer size: 144 Mb QDR SDRAM; 10G Module : ARM9 @ 200 MHz, packet buffer size: 36 Mb QDR SDRAM; Management Module : Freescale PowerPC 8540 @ 666 MHz, 4 MB flash Mb, 128 MB compact flash, 256 MB DDR SDRAM
    Performance
    Throughput
    up to 564.2 million pps
    Ports
    Ports
    96 autosensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 8 open module slots; Supports a maximum of 32 10-GbE ports or 288 autosensing 10/100/1000 ports or 192 mini-GBICs, or a combination
    Host ports
    Supports a maximum of 32 10-GbE ports or 288 10/100/1000 ports and 192 mini-GBICs, or a combination
    Power
    Power supply slots open
    2
    Power
    Two J8712A installed. Two open power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.
    Power consumption (standby)
    299 W
    Input frequency
    50 / 60 Hz
    Power supply name
    2 x J8712A
    Input voltage
    100-127 / 200-240 VAC
    System
    Form factor
    7U height
    Operating temperature range32 to 131°F
    Heat dissipation4900 BTU/hr (5169 kJ/hr)
    Acoustic pressure emissionsPower: 64 dB, Pressure: 57.5 dB, ISO 7779, ISO 9296
    Heat dissipation note(max. non-PoE); 7400 BTU/hr (7807 kJ/hr) (max. using PoE)
    Operating altitude (imperial)up to 10000 ft.
    Storage humidity15 to 95% @ 149°F (65°C) (noncondensing)
    Electromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
    Immunity standardEN 55024, CISPR 24; IEC 61000-4-2; 4 kV CD, 8 kV AD; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
    SafetyCSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
    Weight58 lb.
    Dimensions (W x D x H)17.75 x 17.5 x 12.1 in.
