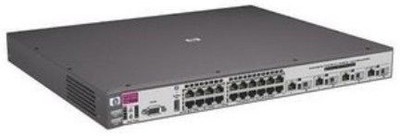

HP ProCurve J4905A EOL Maintenance and Support





HP ProCurve J4905A EOL Maintenance and Support

TeamKCI has extensive hands on experience with the HP ProCurve J4905A switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

The HP ProCurve J4905A reached it’s end of support on March 1, 2014

TeamKCI will continue to support these units for as long as you use them.




    Request A Quick Quote For HPE®!

    Email Address (required)

    This is a request for:


    Overview

    Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

    The HP StorageWorks 2/16V SAN switch provides 16 ports in a single 1U enclosure with auto-sensing 1 and 2 Gbps interfaces for seamless integration with existing fabrics. The HP StorageWorks 2/16V SAN switch offers an optional license which increases switch scaling from four switches to full SAN configurations.

    Used & Refurbished HP Options TeamKCI sells both new and refurbished equipment.  Used HP systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

    Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HP ProCurve J4905A SAN switches and all other pre-owned refurbished HP SAN equipment we sell.  Extended warranties and 24x7x4 onsite support are also available for an additional charge.  Learn more.

    How to Get Started? For more information on a HP ProCurve J4905A SAN switch or any other HP product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

    TechSpecs

    Technical Specifications

    Connectivity
    Routing/switching capacity
    88 Gbps
    Networking
    Address table size
    64,000 entries
    Management features
    ProCurve Manager (included); ProCurve Manager Plus; command line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
    Latency
    1000 MB < 6 µs; 10 Gbps < 10 µs
    Memory and processor
    Processor: Motorola PowerPC MPC8245 @ 266 MHz processor; Dual flash; Packet buffer size: 2 MB (1 MB per 12 ports); Flash Capacity: 16 MB; SDRAM: 128 MB
    Performance
    Throughput
    up to 64 million pps
    Ports
    External I/O ports
    1 open module slot; 20 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; Media type: IEEE Auto-MDIX; 1 RS-232C DB-9 console port; 4 dual-personality ports – each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers)
    Power
    Power availability
    2.0/1.0 A
    Power features
    The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz
    Power consumption
    90 W
    Power requirements
    100-127 VAC/200-240 VAC; 50/60 Hz
    Rack
    Rack mounting
    Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only.
    Operating temperature range 0° to 40° C
    Heat dissipation 307 BTU/hr
    Acoustic pressure emissions Power: 53 dB; DIN 45635T.19 per ISO 7779
    Operating altitude 4,500 m
    Electromagnetic compatibility FCC Class A; VCCI Class A; EN55022/CISPR-22 Class A
    Safety CSA 22.2 No. 60950; UL 60950; EN 60950/IEC 60950
    Compliance industry standards EN: EN55024/CISPR 24; ESD: IEC61000-4-2, 4 kV CD, 8 kV AD; Radiated: IEC61000-4-3, 3V/m; EFT/Burst: IEC61000-4-4, 1.0 kV (power line), 0.5 kV (signal line); Surge: IEC61000-4-5, 1 kV/2 kV AC; Conducted: IEC61000-4-6, 3V; Power frequency magnetic field: IEC 61000-4-8, 1A/m, 50 or 60 Hz; Voltage dips and interruptions: IEC61000-4-11, >95% reduction, 0.5 period: 30% reduction, 25 periods; Harmonics: EN61000-3-2/IEC 61000-3-2; Flicker: EN61000-3-3/IEC 61000-3-3
    Product weight 4.66 kg
    Product dimensions (W x D x H) 44 x 36.7 x 4.4 cm
