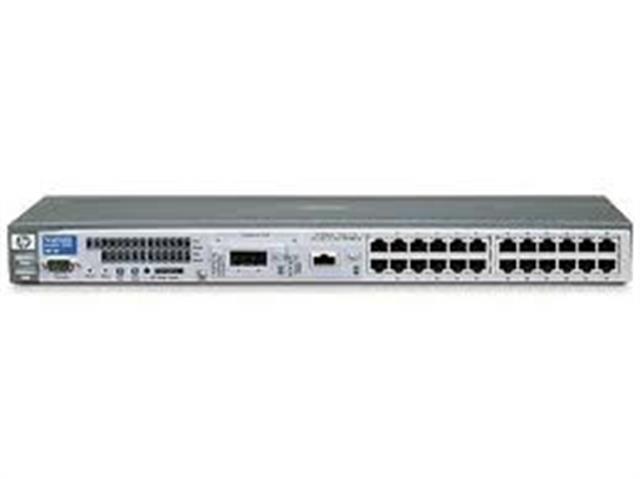

HP ProCurve J4813A

HP ProCurve J4813A

TeamKCI has extensive hands on experience with the HP ProCurve J4813A switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

The HP ProCurve J4813A reached it’s end of support
on April 30, 2015

[circular_countdown settings_id=’4′]

TeamKCI will continue to support these units for as long as you use them.

Request A Quote

Overview

Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

Used & Refurbished HP Options TeamKCI sells both new and refurbished equipment.  Used HP systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HP ProCurve J4813A switches and all other pre-owned refurbished HP SAN equipment we sell.  Extended warranties and 24x7x4 onsite support are also available for an additional charge.  Learn more.

How to Get Started? For more information on a HP ProCurve J4813A switch or any other HP product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

TechSpecs

Technical Specifications

Connectivity
Routing/switching capacity
9.6 Gbps
Networking
Address table size
4,096 entries
Management features
ProCurve Manager (included); ProCurve Manager Plus; command line interface; Web browser; configuration menu; out-of-band management; (serial RS-232C)
Latency
<10 µs (LIFO)
Memory and processor
Processor type and speed: ARM7TDMI @ 62.5 MHz; Packet buffer size: 6 MB; RAM/ROM capacity: 26 MB; Flash capacity: 2 MB
Performance
Throughput
6.6 million pps (64-byte packets)
Ports
Ports
24 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX); 2 open transceiver slots; 1 RS-232C DB-9 console port
Power
Power availability
2.4/1.2 A max
Power consumption
36W
Power requirements
100–127 VAC/200–240 VAC; 50/60 Hz
Rack
Rack mounting
Mounts in a standard 19 in. rack (hardware included)
Operating temperature range 0 to 55° C
Heat dissipation 123 BTU/hr
Operating humidity range 15 to 95% non-condensing
Electromagnetic compatibility FCC Class A; EN 55022/CISPR 22 Class A; VCCI Class A
Safety cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition
Compliance industry standards EN55024, CISPR 24; ESD: IEC 61000-4-2; 4 kV CD, 8 kV AD; Radiated: IEC 61000-4-3; 3V/m; EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
Product weight 2.72 kg
Product dimensions (W x D x H) 44.2 x 20.32 x 4.57 cm
